LDAP and JNDI: Together forever

Learn how LDAP and JNDI combine to form a powerful directory and Java object storage facility

Summary
In this article Sameer Tyagi takes a look at the Java Naming and Directory Interface (JNDI), explaining how you can manipulate Java objects on an LDAP server. He'll show you examples that demonstrate how you can store objects, search for objects, see event handling in LDAP, and much more. (5,000 words)
By Sameer Tyagi


The Lightweight Directory Access Protocol (LDAP), which traces its roots to the X.500 protocol, was developed in the early 1990s as a standard directories protocol. LDAP defines how clients should access data on the server, not how that data is stored on the server. This allows LDAP to become a frontend to any type of data store.

(Note: To download this article's complete source code, see the Resources section below.)

LDAP's basic structure is based on a simple information tree metaphor called a directory information tree (DIT). Each leaf in the tree is an entry; the first or top-level entry is the root entry. An entry includes a distinguished name (DN) and any number of attribute/value pairs. The DN, which is the name of an entry, must be unique. It shows the relationship between the entry and the rest of the DIT in a manner similar to the way in which a file's full path name shows its relationship with the rest of the files in a filesystem. While a path to a file reads left to right, a DN, in contrast, reads from right to left. Here is an example of an DN:


uid=styagi,ou=people,o=myserver.com

The leftmost part of the DN, called a relative distinguished name (RDN), is made up of an attribute/value pair. In the above example, this pair would be uid=styagi. LDAP attributes often use mnemonics, some examples of which are listed in Table 1.

o Organization
ou Organizational unit
cn Common name
sn Surname
givenname First name
uid Userid
dn Distinguished name
mail Email address
Table 1. Some common LDAP attributes

Information about attributes, attribute matching rules, and relationships between objectclasses are defined in the server's schema. Any attribute can have one or more values, depending on how it is defined the schema. A user, for example, can have more than one email address. There is also a special attribute called an objectclass that specifies the required and allowed attributes for a particular entry. Like objects in Java, objectclasses in LDAP can be extended to retain existing attributes and add new ones.

A naming service associates names with objects and finds objects based on their given names. (The RMI registry is a good example of a naming service.) Many naming services are extended with a directory service. While a naming service allows a lookup of an object based on its name, a directory service also allows such objects to have attributes. As a result, with a directory service we can look up an object's attributes or search for objects based on their attributes.

So where does JNDI fit into this LDAP jargon? JNDI does for LDAP what JDBC does for Oracle -- it provides a standard API for interacting with naming and directory services using a service provider interface (SPI), which is analogous to an JDBC driver. LDAP is a standard way to provide access to directory information. JNDI gives Java applications and objects a powerful and transparent interface to access directory services like LDAP. Table 2 below outlines common LDAP operations and their JNDI equivalents. (For a detailed look at the JNDI specification, see Resources.)

Operation What it does JNDI equivalent
Search Search directory for matching directory entries DirContext.search()
Compare Compare directory entry to a set of attributes DirContext.search()
Add Add a new directory entry DirContext.bind(), DirContext.createSubcontext()
Modify Modify a particular directory entry DirContext.modifyAttributes()
Delete Delete a particular directory entry Context.unbind(), Context.destroySubcontext()
Rename Rename or modify the DN Context.rename()
Bind Start a session with an LDAP server new InitialDirContext()
Unbind End a session with an LDAP server Context.close()
Abandon Abandon an operation previously sent to the server Context.close(), NamingEnumneration.close()
Extended Extended operations command LdapContext.extendedOperation()
Table 2. Common LDAP operations and JNDI equivalents

Manipulate objects in the LDAP server
Let's cut to the chase and see how to manipulate objects in the LDAP server. The standard LDAP operations include:

We'll examine each of these steps in the sections below, with examples.

Before executing the examples, you will need to install the LDAP server, the JNDI classes, and (unless you want to disable schema checking) the Java schema. You can find install information in the JNDI zip file's schema directory. Our examples use Netscape Directory Server 4.1 and JDK 2. (To install these packages, see Resources.)

Connect to the server
To connect to the server, you must obtain a reference to an object that implements the DirContext interface. In most applications, this is done by using an InitialDirContext object that takes a Hashtable as an argument. The Hashtable contains various entries, such as the hostname, port, and JNDI service provider classes to use:


Hashtable env = new Hashtable();
env.put(Context.INITIAL_CONTEXT_FACTORY,"com.sun.jndi.ldap.LdapCtxFactory");
env.put(Context.PROVIDER_URL, "ldap://localhost:389");
DirContext ctx = new InitialDirContext(env);

Bind to the Server
Once connected, the client may need to authenticate itself; this process is also known as binding to the server. (Be aware that the word binding can also refer to the act of adding something to the directory.)

In LDAP version 2, all clients had to authenticate while connecting, but version 3 defaults to anonymous and, if the default values are used, the connections are anonymous as well. LDAP servers maintain rights using access control lists (ACLs) that determine what particular access is available to an entry by an application. LDAP supports three different security types:

The client authenticates itself to the server by specifying values for different environment variables in the Context interface, as seen below:


Hashtable env = new Hashtable();
env.put(Context.INITIAL_CONTEXT_FACTORY,"com.sun.jndi.ldap.LdapCtxFactory");
env.put(Context.PROVIDER_URL, "ldap://localhost:389");
env.put(Context.SECURITY_AUTHENTICATION,"simple");
env.put(Context.SECURITY_PRINCIPAL,"cn=Directory Manager"); // specify the username
env.put(Context.SECURITY_CREDENTIALS,"password");           // specify the password
DirContext ctx = new InitialDirContext(env);

Add new entries in the LDAP server: The options
The LDAP directory server can act as a repository for Java objects. JNDI provides an object-oriented view of this directory, which means that Java objects can be added to and retrieved from the directory without the client needing to manage data representation issues.

Objects can be stored in three ways:

Let's take a look at each of these in more detail.

Store the Java objects themselves
If a class implements the java.io.Serializable interface, it can be serialized and deserialized from storage media. If we need a simple name-object binding (as in the RMI registry), then the Context.bind() method can store the object. But if we need the more powerful technique of associating attributes with the stored object, we'd employ the DirConext.bind() method instead. Whichever method we use, the object's state is serialized and stored in the server:


MyObject obj = new MyObject();
ctx.bind("cn=anobject", obj);

Once stored, we can retrieve the object by looking up its name in the directory:


MyObject obj = (MyObject)ctx.lookup("cn=anobject");

When an application serializes an object by writing it to an object stream, it records information that identifies the object's class in the serialized stream. However, the class's definition, which is contained in the classfile, is not itself recorded. The system that deserializes the object is responsible for determining how to locate and load the necessary class files.

Alternatively, the application can record the codebase with the serialized object in the directory, either when the binding occurs or by subsequently adding an attribute using DirContext.modifyAttributes(). (We'll examine this second technique later in this article.) Any attribute can record the codebase as long as the application reading back the object is aware of the attribute name. As another option, we can employ the attribute "javaCodebase" specified in the LDAP schema for storing Java objects if schema checking is enabled on the server.

The above example can be modified to supply a codebase attribute containing the location of the MyObject class definition:


// Create object to be bound
MyObject obj = new MyObject();
// Perform bind and specify codebase
BasicAttribytes battr = new BasicAttributes("javaCodebase","http://myserver.com/classes")
ctx.bind("cn=anobject", obj, battr);

AddSeriaize.java demonstrates how to add 10 instances of java.util.Vector, which implements java.io.Serializable; the result can be seen in Figure 1.

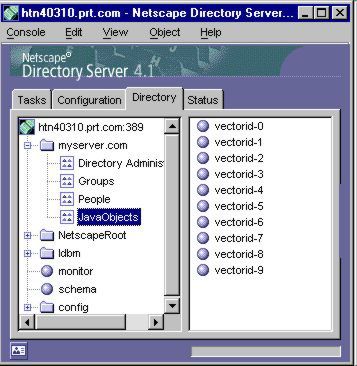

Figure 1. Screen shots of the server console after running the ADDSerialize example

Store a reference to the object
Instead of storing the entire serialized state of an object, you can store a reference to that object instead. JNDI's javax.naming.Reference class records address information about objects not directly bound to the directory service. The reference to an object contains the following information:

The javax.naming.RefAddr abstract class, seen in Figure 2 below, contains information indicating the ways in which you can contact the object (e.g., via a location in memory, a lookup on another machine, etc.) or recreate it with the same state. The class defines an association between content and type. The content (an object) stores information required to rebuild the object and the type (a string) identifies the purpose of the content.


Figure 2. The relation between a Reference, RefAddr, Type, and Content

RefAddr also overrides the java.lang.Object.equals(Object obj) and java.lang.Object.hashcode() methods to ensure that two references are equal if the content and type are equal. RefAddr has two concrete subclasses: javax.naming.StringRefAddr, which stores strings, and javax.naming.BinaryRefAddr, which stores an array of bytes. For example, a string reference address could be an IP, URL, hostname, or something similar.

Consider the example of a referenceable Apartment class. The ADDReference.java example creates a few instances of Apartment and stores them in the server. What happens internally? Since the object is referenceable, a reference is stored and not the serialized object. When the example tries to look up an apartment belonging to styagi, it gets a reference from the server that contains information about the factory class needed, the apartment size, and its location. It then requests that the factory create an Apartment object with the right size and location and return that object. All this happens transparently to the user.


Context ctx = new InitialContext(env);

ctx.bind("apartment=styagi,ou=JavaObjects,o=myserver.com",new
   Apartment("studio","Mill Complex"));

ctx.bind("apartment=mojoe,ou=JavaObjects,o=myserver.com", new Apartment("2
   room","Farm House Apartments"));

ctx.bind("apartment=janedoe,ou=JavaObjects,o=myserver.com",new Apartment("1
   room","Pond Side"));

ctx.bind("apartment=rogerp,ou=JavaObjects,o=myserver.com", new Apartment("3
   room","Mill Complex"));

ctx.bind("apartment=jamesm,ou=JavaObjects,o=myserver.com", new
   Apartment("studio","Fox Hill Apartments"));

ctx.bind("apartment=paulh,ou=JavaObjects,o=myserver.com",  new
   Apartment("duplex","Woodbridge"));

ctx.bind("apartment=vkevink,ou=JavaObjects,o=myserver.com",new Apartment("1
   room","Woodgate Apartments"));

Apartment apt = (Apartment)ctx.lookup("apartment=styagi,ou=
   JavaObjects,o=myserver.com");

System.out.println(apt);

The Apartment class would look something like:


public class Apartment implements Referenceable{
private String size;
public String location;
public Apartment(String size,String location){
this.size=size;
this.location=location;
}
public Reference getReference() throws NamingException{
String classname = Apartment.class.getName();
StringRefAddr classref =
             new StringRefAddr("Apartment details", size+ ":" +location);
String classfactoryname=ApartmentFactory.class.getName();
Reference ref = new Reference(classname,classref,classfactoryname,null);
return ref;
}
public String toString(){
   return ("This apartment is "+size+ " and is located at " +location);
}
}

The factory used to recreate the Apartment objects, ApartmentFactory, is stored in the Reference, as shown above. The ApartmentFactory implements the javax.naming.spi.ObjectFactory interface, which contains the getObjectInstance() method that returns a newly constructed object based on the reference, as seen below:


public Object getObjectInstance(Object obj,Name name,
Context ctx,Hashtable env)throws Exception{
Reference ref = (Reference)obj;
RefAddr addr = ref.get("Apartment details");
String  temp = (String)addr.getContent();
int offset= temp.indexOf(":");
String  size =  temp.substring(0,offset);
String  location = temp.substring(offset+1);
return (new Apartment(size,location));
}

The getObjectInstance() method parses the components and tries to reconstruct a reference that describes an Apartment object. The factory interprets the values of the reference, and it's free to ignore nonrelevant parts and create a new object instead. The objects and properties produced after ADDReference.java runs can be seen in screen shots in Figures 3 and 3a.

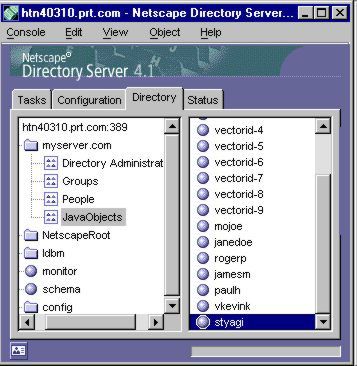

Figure 3. Screen shot showing that objects were added to the server

:

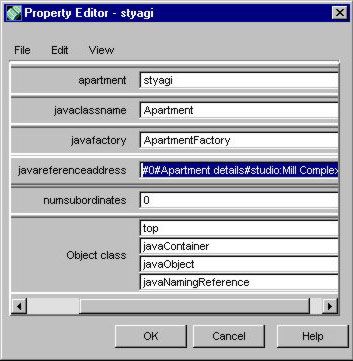

Figure 3a. Screen shot of the object properties, highlighting the fact that it is actually a reference

Store information as attributes
The last technique to store nonserializable and nonreferenceable objects involves storing attributes rather than the object or a reference to the object. If the bound object implements the DirContext interface, the LDAP ADD operation extracts and stores the object's attributes. This technique doesn't store the actual object, but rather stores the attributes inside that object. Consider the User object:


public class User implements DirContext{
   String id;
   String dn;
   Attributes myAttrs = new BasicAttributes(true);
   Attribute oc = new BasicAttribute("objectclass");
   Attribute ouSet = new BasicAttribute("ou");
public User(String dn,String uid, String givenname,String sn,String ou,
              String mail,String tel,String fax){
      this.dn=dn;
      id = uid;
      oc.add("inetOrgPerson");
      oc.add("organizationalPerson");
      oc.add("person");
      oc.add("top");
      ouSet.add("People");
      ouSet.add(ou);
      String cn = givenname+" "+sn;
      myAttrs.put(oc);
      myAttrs.put(ouSet);
      myAttrs.put("uid",uid);
      myAttrs.put("cn",cn);
      myAttrs.put("sn",sn);
      myAttrs.put("givenname",givenname);
      myAttrs.put("mail",mail);
      myAttrs.put("telephonenumber",tel);
      myAttrs.put("facsimilietelephonenumber",fax")
   }
public Attributes getAttributes(String name) throws NamingException {
      if (! name.equals("")){
         throw new NameNotFoundException();
      }
      return myAttrs;
   }
public Attributes getAttributes(Name name) throws NamingException {
      return getAttributes(name.toString());
   }
public Attributes getAttributes(String name, String[] ids)
                                            throws NamingException {
      if(! name.equals(""))
         throw new NameNotFoundException();
      Attributes answer = new BasicAttributes(true);
      Attribute target;
      for (int i = 0; i < ids.length; i++){
         target = myAttrs.get(ids[i]);
         if (target != null){
            answer.put(target);
         }
      }
      return answer;
   }
public Attributes getAttributes(Name name, String[] ids)
                                              throws NamingException {
      return getAttributes(name.toString(), ids);
   }
// other methods of DirContext with blank implementations.

The User object can be added simply by:


User usr = new User("styagi","Sameer","Tyagi","ou=Accounting",
   "sameertyagi@usa.net");
ctx.bind("uid=styagi,ou=People,o=myserver.com", usr);

Let me emphasize again that this technique does not store the User object, but rather stores its attributes. AddAtributes.java shows how you can add 10 Person objects using attributes. Figures 4 and 4a show screen shots of the server and property sheet for the Moe Joe entry.

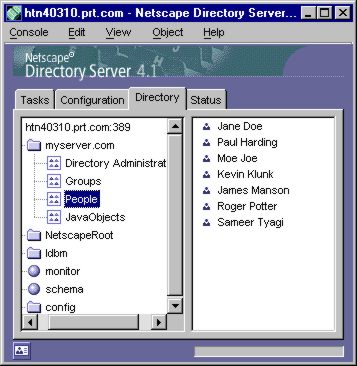

Figure 4. Screen shot showing that entries were added

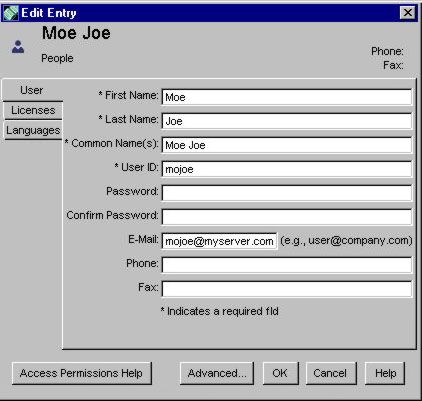

Figure 4a. Screen shot showing attributes of an entry

Modify stored objects
Once we've stored an object, we can add attributes to its entry -- a simple and strong combination that allows us to return Java objects with a search for the objects' attributes. The DirContext class's modifyAttributes() method can perform ADD, REPLACE, or REMOVE modifications. In the following example, we store an account object and add an attribute lastlogin with values of date, last deposit, last withdrawal, and balance; we'll use the simpler, overloaded version of the modifyAttributes() method.


Attributes myAttrs = new BasicAttributes(true);
  Attribute oc = new BasicAttribute("lastlogin");
      oc.add("Monday January 12 1999"); //date
      oc.add("200"); //last deposit
      oc.add("43"); //last withdrawal
      oc.add("7652"); balance
  myAttrs.put(oc);
  Account  act = new Account("styagi");
  String cn="cn=test,ou=JavaObjects,o=myserver.com";
  ctx.bind(cn, act);
  ctx.modifyAttributes(cn,DirContext.ADD_ATTRIBUTE,myAttrs);

When an object attribute has multiple values, if the extra values are not sent with a replacement value, they will be removed. This version of modifyAttributes() allows only a single atomic operation on the object on one or more attributes. If several modifications to a stored object entry are to be made, the ModificationItem that takes an Attribute object and a modification type is used. Like all other operations, an authenticated user with sufficient rights can perform these operations. Modifications are applied in the order in which they appear in the array, and either all of the modifications execute or none do. The example below shows how to replace, add, or remove multiple attributes:


DirContext ctx = new InitialDirContext(env);ModificationItem[] mods = new ModificationItem[3];Attribute mod0 = new BasicAttribute("telephonenumber","860-888-8888");
Attribute mod1 = new BasicAttribute("l", "Hartford");
mods[0] = new ModificationItem(DirContext.REPLACE_ATTRIBUTE,mod0);
mods[1] = new ModificationItem(DirContext.ADD_ATTRIBUTE,mod1);
mods[2] = new ModificationItem(DirContext.REMOVE_ATTRIBUTE,mod1);
ctx.modifyAttributes("uid=styagi,ou=People,o=myserver.com", mods);

MODObject.java shows an example. However if modification involves renaming only the DN, then the Context.rename() method will suffice, as seen below:


Context.rename("uid=styagi,ou=People,o=myserver.com",
                                   "uid=sameer,ou=People,o=myserver.com");

Figure 5 demonstrates the server's output from the MODObject.java example.

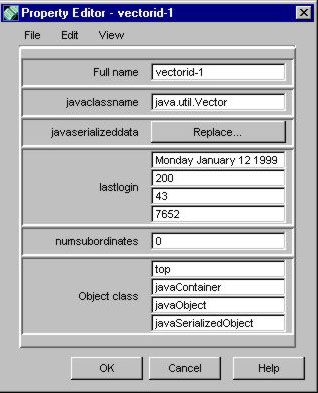

Figure 5. Property sheet for the vectorid-1 entry added in the ADDSerialize example and modified by executing MODObject.java

Delete stored objects
A context consists of a set of name-to-object bindings. The subcontext represents the context under the context in the LDAP tree. We can delete the User object by destroying the subcontext. The converse, however, is not true -- that is, creating a subcontext with the DirContext.createSubcontext() method doesn't add any objects. The Context.unbind() method produces the same output, but also works under a clustered naming system in which a context from one naming system may be bound to a name in another. The unbind() method succeeds in removing this foreign context. (A foreign context is by definition not a subcontext of the context in which it is bound). Deleting objects works only for leaves in the tree; if tried on a node, JNDI will throw a ContextNotEmptyException.

To delete an object:


DirContext ctx = new InitialDirContext(env);
ctx.destroySubcontext("uid=styagi, ou=People, o=myserver.com");

DELObject.java shows an example of deleting objects.

Search the server for an entry
LDAP boasts feature-rich search facilities. The simplest level of search can use the JNDI naming service to perform the following types of searches:

The example DifferentSearches.java looks up a DN and checks if the object returned is a Vector, as seen in Figure 6.

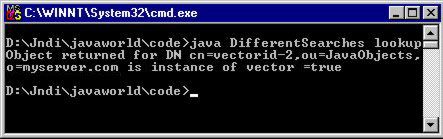

Figure 6. Output from DifferentSearches.java for a lookup operation

LDAP stores information in the tree and everything is specific to the node. Therefore, to search for an object in the LDAP server, you need to specify the node or the base from which to start -- the scope of the search. The scope defines exactly how much of the tree should be searched. There are three levels of scope, as outlined in Table 3 and Figures 7, 7a, and 7b below.

SUBTREE_SCOPE Starts at the base entry; searches the base entry and everything below it
ONELEVEL_SCOPE Searches only the entries below the base entry
OBJECT_SCOPE Searches only the base entry; useful if you need to get attributes/value pair of just one entry
Table 3. Different levels of scope


Figure 7. Searchbase: o=myserver.com Scope=LDAP_SCOPE_SUBTREE

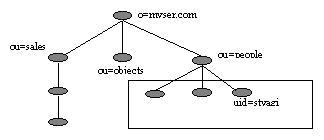

Figure 7a. Searchbase: ou=people, o=myserver.com Scope=LDAP_SCOPE_ONE_LEVEL

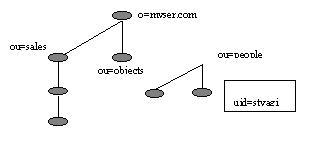

Figure 7b. Searchbase :uid=styagi,ou=people,o=myserver.com Scope= LDAP_SCOPE_ONE_LEVEL

To perform the physical search, we invoke the search() method on the object that implements the DirContext interface (InitialDirContext). The search result is NamingEnumeration, an enumeration of SearchResult objects. At minimum, you need the search base and the filter in order to perform a search, but other parameters can be specified to manage the results. The SearchContols object holds most additional parameters for the search, including scope, as seen below:


SearchControls ctls = new SearchControls();
setSearchScope(SearchControls.SUBTREE_SCOPE)

Search on attributes

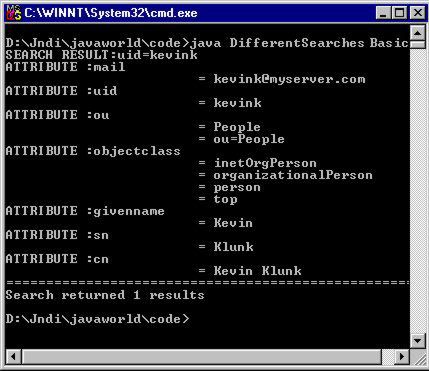

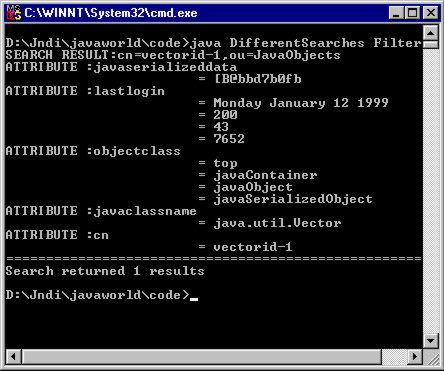

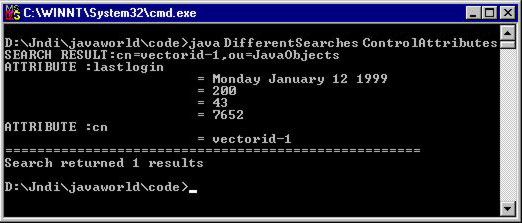

The other type of search involves searching the attributes of objects and entries for particular values. The simplest form of search requires the set of attributes and the name of the target context in which the search is to be performed. The following code shows how to search the server for anything that has specified values for uid and email. The result is a NamingEnumeration:


Attributes matchAttrs = new BasicAttributes(true);
matchAttrs.put(new BasicAttribute("uid", "kevink"));
matchAttrs.put(new BasicAttribute("mail","sameertyagi@usa.net"));
// Search for objects with these matching attributes
NamingEnumeration answer = ctx.search("ou=People,o=myserver.com",matchAttrs);

When the above code is executed, you get the result shown in Figure 8.


Figure 8. Output of differentSearches.java for a basic search.

Search with filters
LDAP works with search filters. A search filter is a search query expressed in the form of a logical expression. RFC 2254 describes the syntax of search filters that the DirContext.search() methods will accept (see Resources), with the exception that Unicode characters are also allowed. Keep in mind that the use of Unicode characters is preferable to the use of encoded UTF-8 octets. The search filter syntax is a logical expression with a prefix notation (the logical operator appears before its arguments). Table 4 summarizes the different filter symbols and their meanings.

Symbol Filter Example Example matches
~ Approximate (sn~=Tyagi) Tyagi or variations in spelling
= Equality (sn=Tyagi) Surname of Tyagi only
> Greater than (sn=Tyagi) Any surname that alphabetically follows Tyagi
>= Greater than or equal to (sn>=Tyagi) Any surname that includes or alphabetically follows Tyagi
< Less than (sn<Tyagi) Any surname that alphabetically precedes Tyagi
<= Less than or equal to (sn<=Tyagi) Any surname that includes or alphabetically precedes Tyagi
=* Presence (sn=*) All surnames (all entries with the sn attribute)
Substring (sn=Tya*), (sn=*yag*), (sn=Ty*g*) Any matching string, substring, or superstring that matches Tyagi
& And (&(sn=Tyagi) (cn=Sameer Tyagi)) Any entry that matches both surname of Tyagi and a common name of Sameer Tyagi
| Or (|(sn=Tyagi) (cn=Sameer Tyagi)) Any entry that matches either surname of Tyagi or a common name of Sameer Tyagi
! Not (!(sn=Tyagi)) Any entry other than that with a surname of Tyagi
Table 4: Symbols and examples used for creating filters

Each item in the filter is composed of an attribute identifier and either an attribute value or symbols denoting the attribute value. The following search filter specifies that the qualifying entries must have a userid attribute with a value of styagi and a jpeg photograph with bytes: 82 12 38 4e 23 e3 (binary data):


(&(uid=styagi)( jpegphoto=\82\12\38\4e\23\e3))

The following code demonstrates how to search using a filter and search controls:


SearchControls ctls = new SearchControls();
String filter = "(&(cn=myappuser-1)( lastlogin=*))";
NamingEnumeration answer = ctx.search("ou=People", filter, ctls);

The output of the above code can be seen in Figure 9.


Figure 9. DifferentSearches for a filtered search

Control search results
Let's now turn our attention to controlling the results of the search.

Control attributes
By default, a search will return all attributes associated with the result that satisfy the specified query. To specify the desired attributes, create an array of attribute identifiers, then invoke setReturningAttributes on the search controls:


// Specify the ids of the attributes to return
String[] attrIDs = {"cn", "lastlogin"};
SearchControls ctls = new SearchControls();
ctls.setReturningAttributes(attrIDs);

The output of the above code can be seen in Figure 10.


Figure 10. Output of DifferentSearches for controlled attribute search

Control the number of results
By default, a search does not have a limit on the number of results returned. If the search produces too many results or consumes too many resources, the setCountLimit() method can specify the number of results, although proper use of scope and filters should be the preferred means to refine searches:


// Set search controls to limit count to 1
SearchControls ctls = new SearchControls();
ctls.setCountLimit(1);

If the count limit is set and there are more results, the search may throw a SizeLimitExceededException.

Control time
If needed, the setTimeLimit() method can set the maximum search completion time for the answers. This is a useful technique when you don't want your program to block for an extended period of time:


// Set search controls to limit time to 3 seconds
SearchControls ctls = new SearchControls();
ctls.setTimeLimit(3000);

If the search exceeds its specified time limit before the search operation can be completed, a javax.naming.TimeLimitExceededException is thrown. A time limit of 0 will make the program wait indefinitely until the search is completed.

Return the Java objects in the result
It is important to invoke the setReturningObjFlag(boolean on) method, as it determines whether the search returns the attributes stored in the server or the object itself. It should be set to true in order to get Java objects in the NamingEnumeration. If set to false, the search is faster, but it returns only the object name and class, not the object data:


SearchControls ctls = new SearchControls();
ctls. setReturningObjFlag (true);

Control links
A link is an entry in a context that references another entry, similar to a symbolic link in a filesystem. Searches can either traverse links, looking for matches to a search, or ignore them. The setDerefLinkFlag(boolean on) method determines if this happens or not:


SearchControls ctls = new SearchControls();
ctls.setDerefLinkFlag (true);

DifferentSearches.java shows an example of all the searches described above.

The COMPARE operation
In LDAP, a COMPARE operation allows a client to specify a DN and an attribute/value pair (an assertion provided with an entry) in the directory. The server determines if the named entry has those name/value pairs as attributes, returning a boolean answer indicating this. The COMPARE operation allows the server to keep certain attribute/value pairs secure by not exposing them to applications. The server can compare the DN uid=styagi,ou=People,o=myserver.com for the attribute password=hotjava, but it can't search for all users who have hotjava as the password. The comparison can be performed in JNDI using a search with certain constraints:

As an example, DifferentSearches.java examines the attribute's last login to see if it has a value of 200 for a DN of cn=vectorid-i,ou=JavaObjects,o=myserver.com:


SearchControls ctls = new SearchControls();
ctls. setReturningObjFlag (true);
ctls.setReturningAttributes(new String[0]);
ctls.setSearchScope(SearchControls.OBJECT_SCOPE);
String filter = "(lastlogin=200)";
NamingEnumeration answer =  ctx.search("cn=vectorid-1,ou=JavaObjects,o=myserver.com", filter, ctls);

Since a search always returns enumeration, and there is no method to determine the number of results (except setting a counter) if the compare succeeds, the resulting enumeration will contain a single result with an empty name and no attributes.

Event handling
JNDI supports AWT 1.1-type event handling in the javax.naming.event package. However, you need to add the listeners to the objects after the objects are registered in the JNDI tree if you want to make the tree event aware. The LDAP server must support persistent search control for events to be propagated.

Table 5 shows the trapped NamingEvent types.

NamingEvent.OBJECT_CHANGED

An object's contents (e.g., its attributes) have changed or its binding have been replaced

NamingEvent.OBJECT_ADDED

A new object has been added to the namespace

NamingEvent.OBJECT_REMOVED

An existing object has been removed from the namespace

NamingEvent.OBJECT_RENAMED

An existing object has been given another name
Table 5. Object events

For an object to be a listener, it must implement the javax.naming.event.NamingListener interface or either of its two specialized subinterfaces: javax.naming.NamespaceChangeListner or javax.naming.event.ObjectChangeListener. The NamespaceChangeListener registers interest in the DN and invokes when objects are added, removed, or renamed to that DN. In contrast, an ObjectChangeListener, which is more single-object specific, invokes when its attributes are modified or the object/object binding is replaced. MyNamingListener.java and MyObjectListener.java show how to implement a simple NamespaceChangeListener and ObjectChangeListener, respectively.

Since we add the object in the JNDI tree to add a listener, that object first has to be located. The EventContext locates the object when the DN or name of the object is known, whereas we employ EventDirContext when we have to search for the object. The code from DifferentListeners.java below shows how to add a NamespaceChange listener to an EventContext:


Context inictx =getContext();
EventContext ctx=(EventContext)(inictx.lookup("o=myserver.com"));
NamingListener objlsnr =new MyNamingListener();
ctx.addNamingListener("ou=JavaObjects",EventContext.SUBTREE_SCOPE, objlsnr);
ctx.bind("cn=eventtest,ou=JavaObjects",new Vector());
ctx.rename("cn=eventtest,ou=JavaObjects","cn=eventtestrenamed,ou=JavaObjects");

If the object's DN is not known, EventDirContext can search for the object starting from the ou=JavaObjects in the DIT:


Context inictx =getDirContext();
EventDirContext ctx=(EventDirContext)(inictx.lookup("o=myserver.com"));
NamingListener naminglsnr= new MyNamingListener();
SearchControls ctls = new SearchControls();
ctls.setSearchScope(SearchControls.SUBTREE_SCOPE);
ctx.addNamingListener("ou=JavaObjects","(cn=*)",ctls, naminglsnr);
// Test the listener
ctx.unbind("cn=vectorid-9,ou=JavaObjects");

Just as in the case of a search, listeners have a scope (e.g., EventContext.ONELEVEL_SCOPE) defining the part of the tree to which they should listen. DifferentListeners.java shows how to use a NamespaceChangeListener. A screen shot of the output can be seen in figure 11.

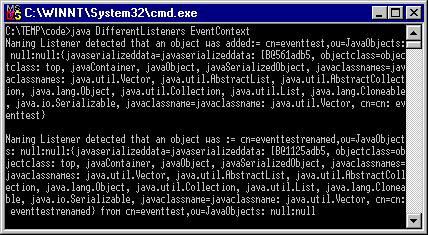

Figure 11. Screen shot of the console, showing how an event is trapped

Remove listeners
There are three ways to remove a registered listener:

  1. When the Context.close() method invokes on the event source and all registered listeners are removed

  2. When a listener receives an error notification as a result of the NamingExceptionThrown()

  3. When EventContext.removeNamingListener() explicitly removes a listener

Conclusion
The Lightweight Directory Access Protocol defines the ways in which clients should access data from a server. As we've seen, LDAP is a powerful directory server, especially when used in conjunction with Java's JNDI. In this article, we've defined several important LDAP-related terms, looked at how to connect to an LDAP server, examined how to store Java objects on the server, and detailed LDAP's search features.

If the information presented here seems overwhelming, let me assure you that it's not. After you build a couple of applications, you'll appreciate LDAP's simplicity and usefulness.


About the author
Sameer Tyagi has been working on Java since the 1.02 days. Besides developing Internet/intranet applications with server-side Java, he has also run training sessions, workshops, and written articles. In other words, when he's not doing Java, its because he's doing more Java.

Example code Resources necessary to run the examples Todd Sundsted's How To Java LDAP series SunWorld's LDAP series Other important LDAP resources
